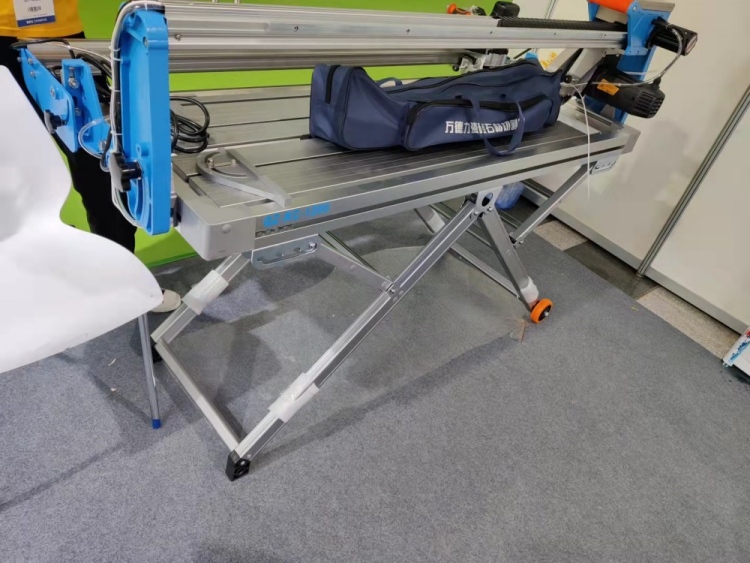

Portability Compactness: Tile cutting machines are available in various sizes, including smaller, models. This makes them convenient to transport and use on job sites with limited.
Model :
QXZ-ZD-1000Motor :
220V 50Hz1550W 12000r/minMax size of saw blade :
Ф120 mmMax cutting depth 90°/45° :
30 mm/20 mmMax cutting length :
1000 mmSize of table :
1000 x 500 mmCooling water pump :
DC 24V 30W 9m 6L/minPacking size(mm) :
1700x540x 490N.W/G.W :

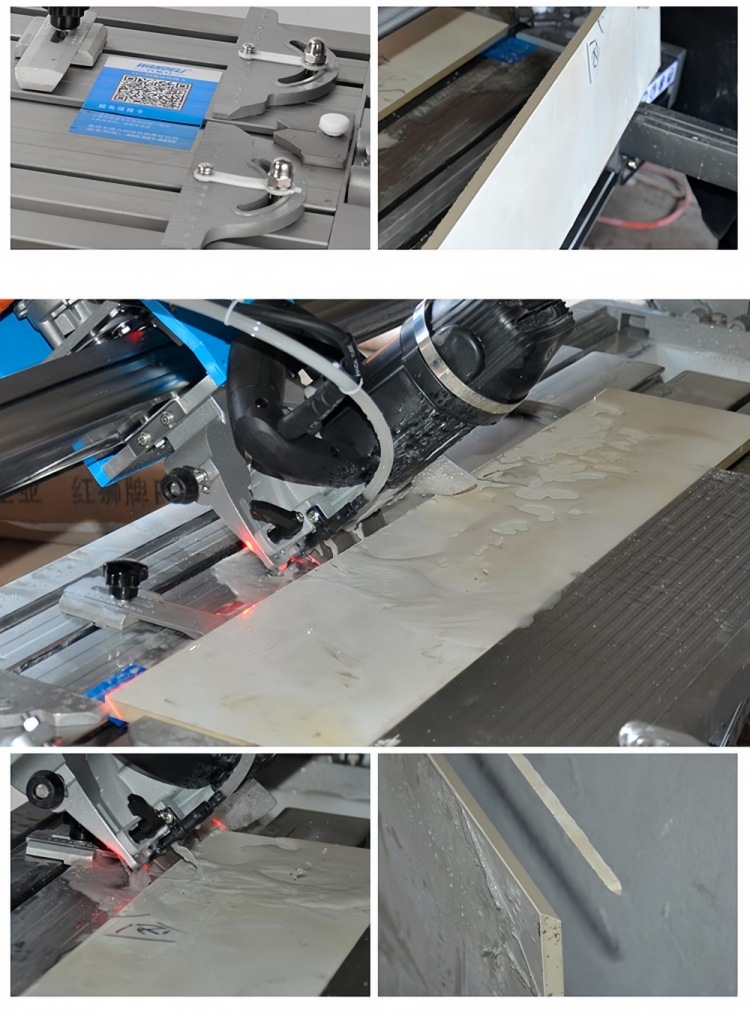

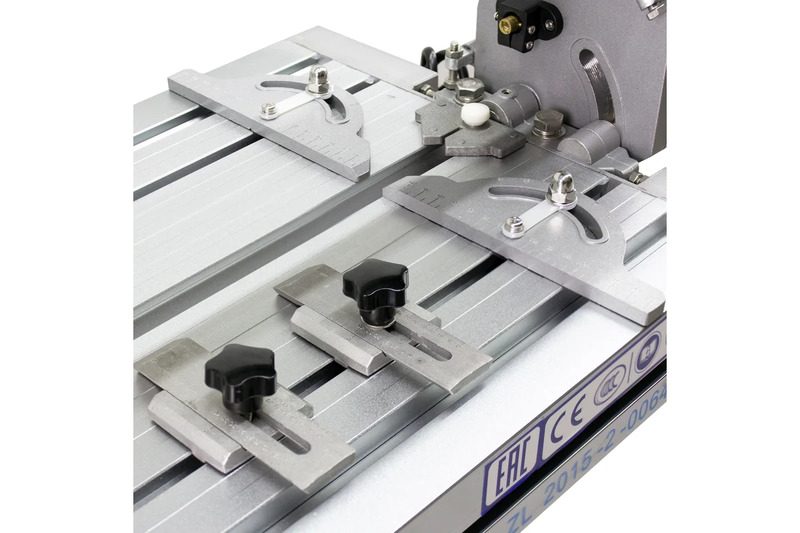

58/78 KgIt can do straight cutting, 45 degree chamfer, diagonal cutting, grinding round edge, grinding straight edge, flat groove opening non-slip groove, internal 45 degree chamfer, external 45 degree chamfer, crabapple Angle and other processing technology, to achieve a variety of functions as one.
The parameters of our products:

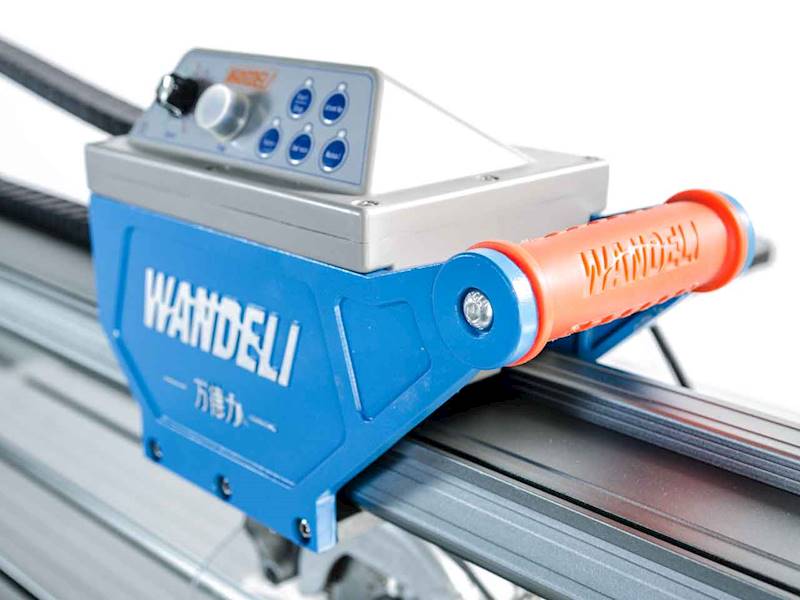

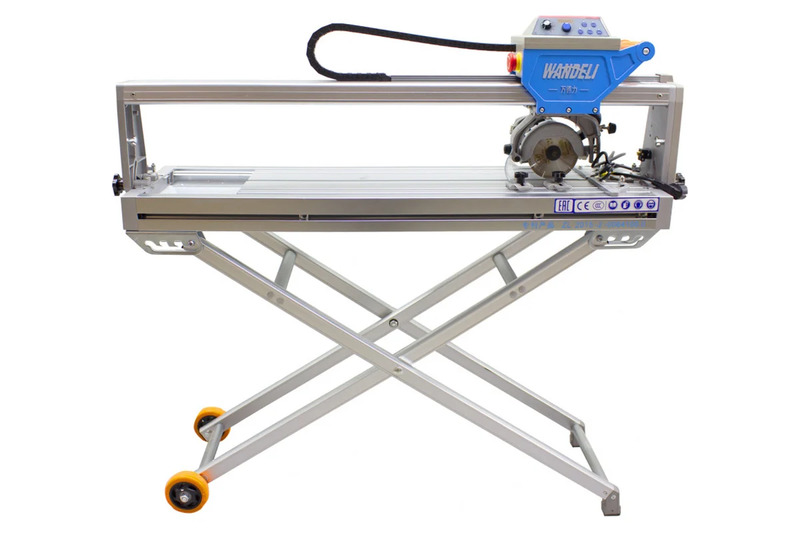

Brand: WANDELI Automatic Series For Cutting Ceramic Tile Panels
Model: QXZ-ZD-1000
Power supply type: AC power supply

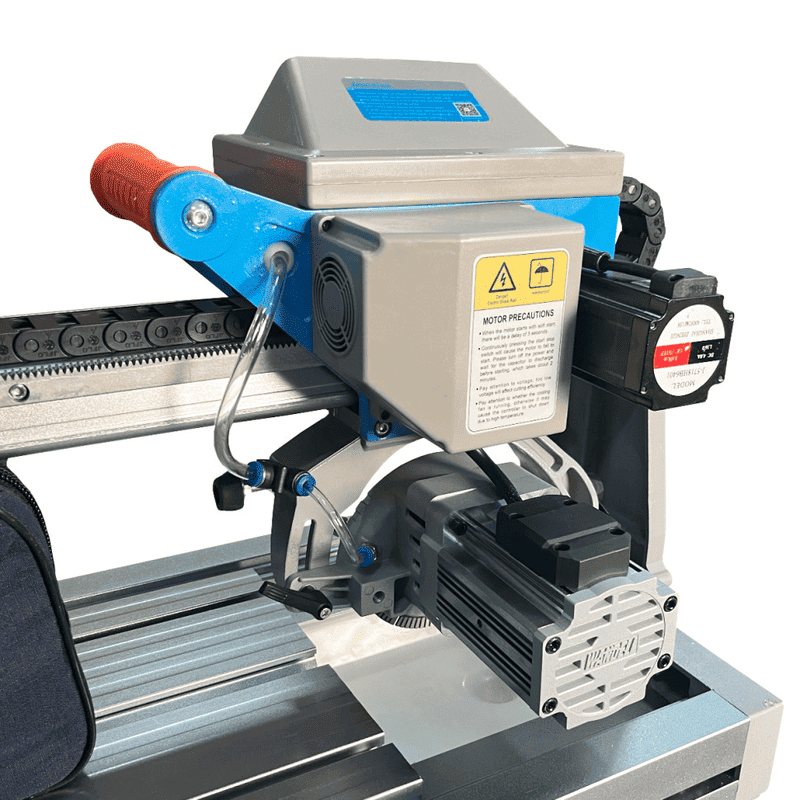

Drive motor: 220V 50HZ 1550W 12000r/min
Cooling water pump: DC 24V 36W 9M 6L/min
Max blade size: 120mm Max cutting length: 1000mm

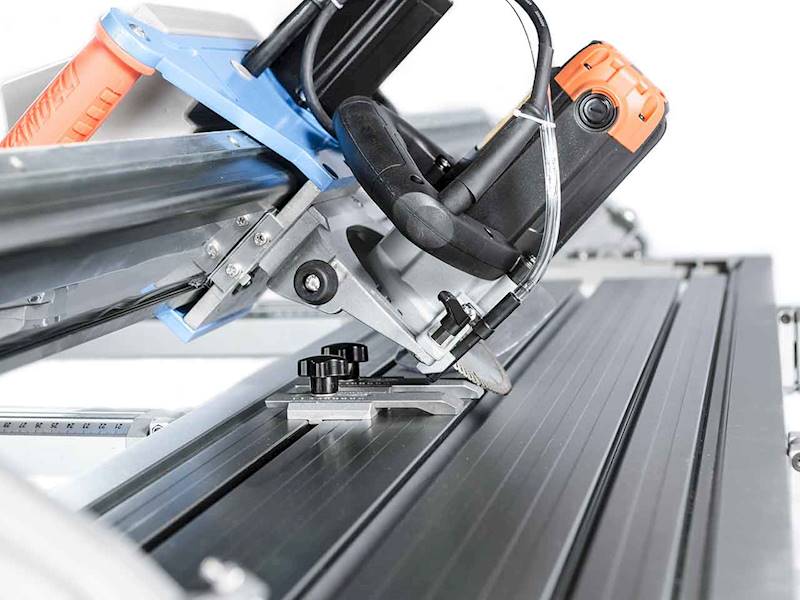

Maximum cutting depth 90°/45° : 30mm/20mm
Table size: 1000×500mm
3C Certificate number: 2006010516190278
Product patent number: ZL 2015-2-0064100.0
Scope of application: construction engineering, stone processing, building materials construction, decoration
Rated voltage range: AC single phase and DC above 50V 250V and below

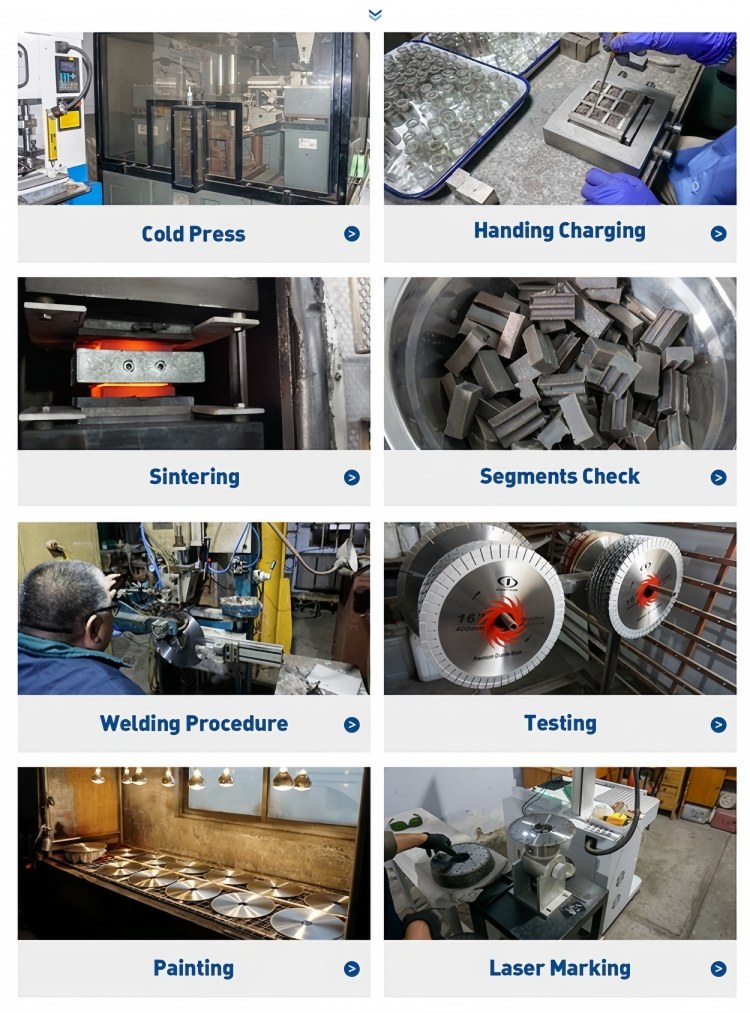

Company Profile:
