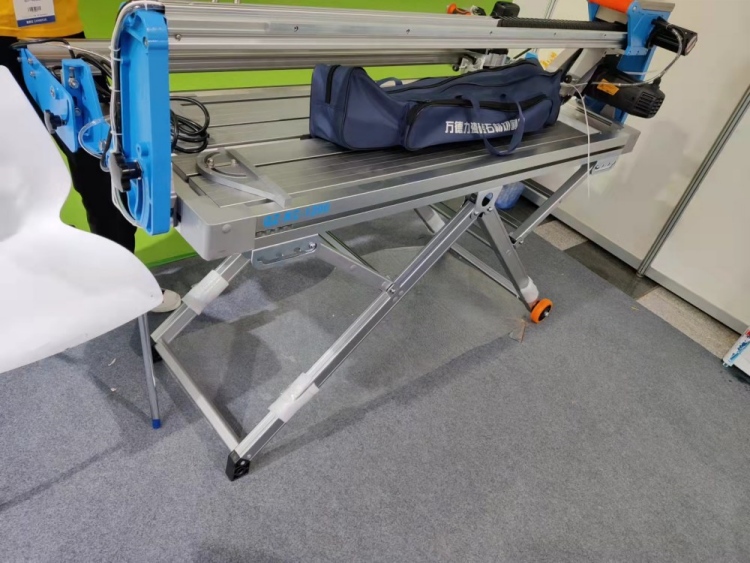

Ceramic tile cutting machine can save labor costs: can reduce labor by more than 50%, a processing molding, greatly reduce production costs
Model :
QX-ZD-800Motor :
220V 50Hz 1550W 12000r/minMax size of saw blade :
Ф120 mmMax cutting depth 90°/45° :
30 mm/20 mmMax cutting length :
800 mmSize of table :
800 X 350 mmCooling water pump :
DC 24V 30W 9m 6L/minPacking size(mm) :
1310x 455x505N.W/G.W :
36/41 KgThe ceramic tile cutting machine is divided into two kinds from the braking method, namely: manual and electric. Manual type is divided into two types: self-testing type and lightweight type. Manual self-testing type tile cutting machine is simple to operate, a measure a row, 2 minutes to learn, 3 seconds to finish cutting, no electricity, no water, no dust, no noise, environmental protection, safe and efficient
The parameters of our products:

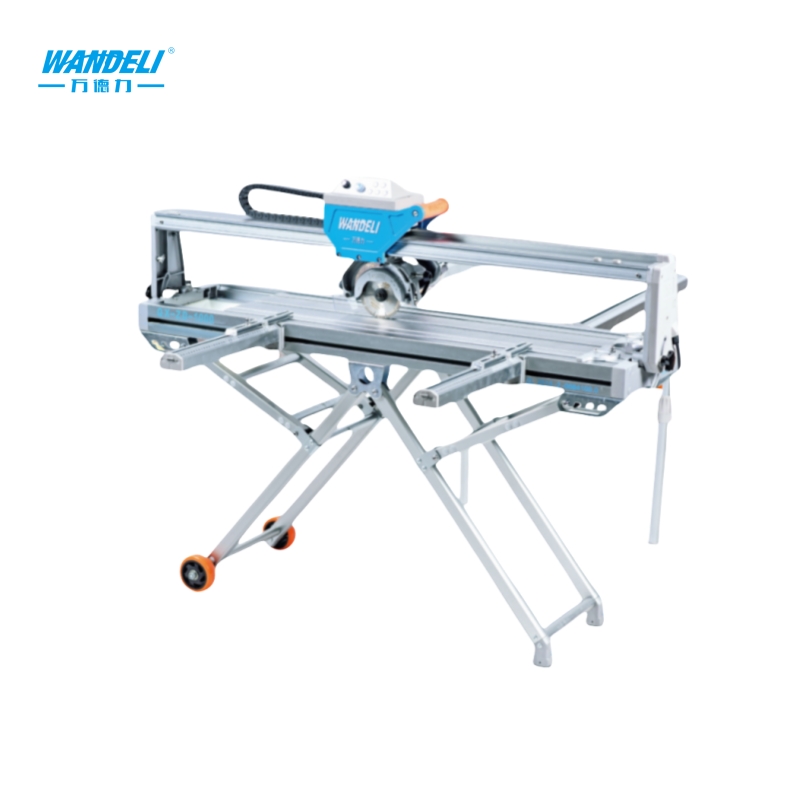

Brand: WANDELI Ceramic Tile Cutting Automatic Series
Model: QX-ZD-800
Power supply type: AC power supply
Drive motor: 220V 50HZ 1550W 12000r/min
Cooling water pump: DC 24V 36W 9M 6L/min
Max blade size: 120mm Max cutting length: 800mm
Maximum cutting depth 90°/45° : 30mm/20mm
Table size: 800×350mm
3C Certificate number: 2006010516190278
Product patent number: ZL 2015-2-0064100.0
Scope of application: construction engineering, stone processing, building materials construction, decoration
Rated voltage range: AC single phase and DC above 50V 250V and below
