Cut once completed. The slit is narrow, the precision is high, the slit roughness is good, and there is no need for reprocessing after cutting.
Model :
QX-ZD-1200Motor :
220V 50Hz1550W 12000r/minMax size of saw blade :
Ф120 mmMax cutting depth 90°/45° :
30 mm/20 mmMax cutting length :
1200 mmSize of table :
1200 x 350 mmCooling water pump :
DC 24V 30W 9m 6L/minPacking size(mm) :
1760x455x580N.W/G.W :
44/51 KgHigh degree of automation of cutting. Ceramic tile cutting equipment can be fully closed processing, no pollution, low noise, greatly improving the working environment of the operator. Low processing cost. The one-time investment in equipment is more expensive, but continuous, large-scale processing eventually reduces the processing cost of each part.
The parameters of our products:

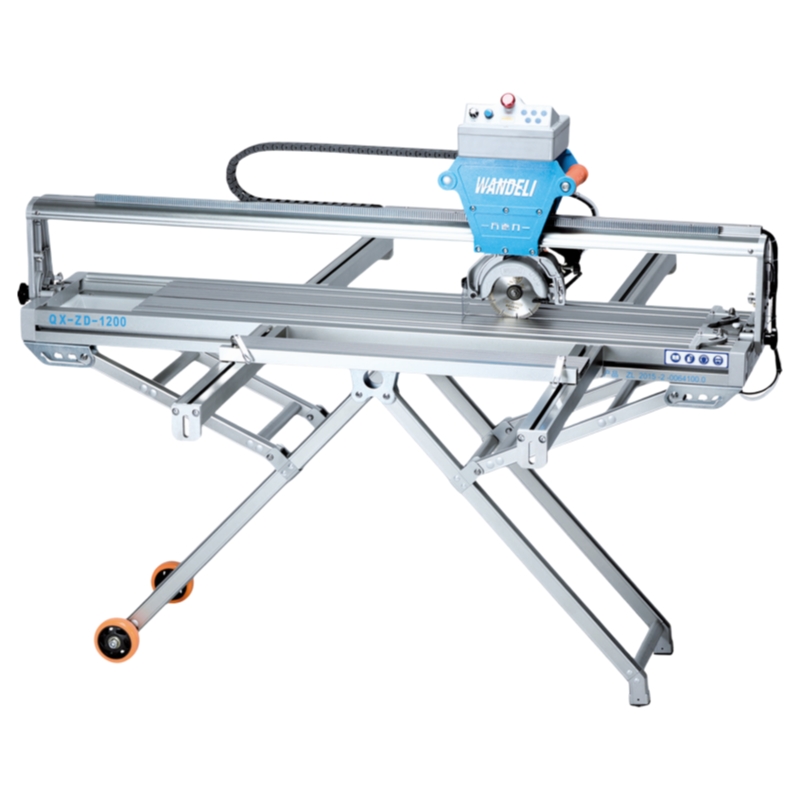

Brand: WANDELI Ceramic Tile Cutting Automatic Series
Model: QX-ZD-1200
Power supply type: AC power supply
Drive motor: 220V 50HZ 1550W 12000r/min
Cooling water pump: DC 24V 36W 9M 6L/min
Max blade size: 120mm Max cutting length: 1200mm
Maximum cutting depth 90°/45° : 30mm/20mm
Table size: 1200×350mm
3C Certificate number: 2006010516190278
Product patent number: ZL 2015-2-0064100.0
Scope of application: construction engineering, stone processing, building materials construction, decoration
Rated voltage range: AC single phase and DC above 50V 250V and below
