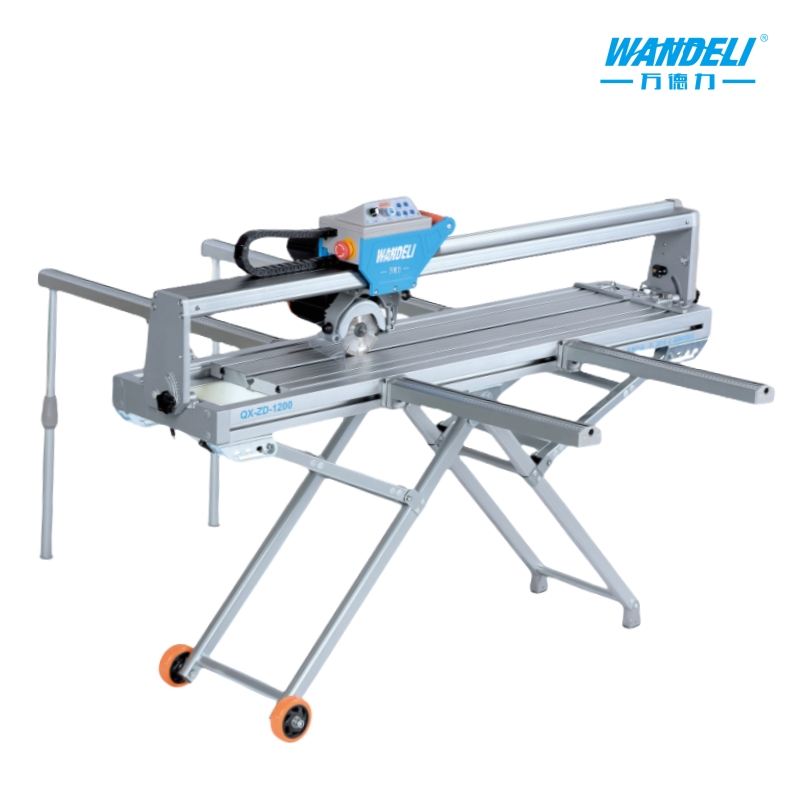

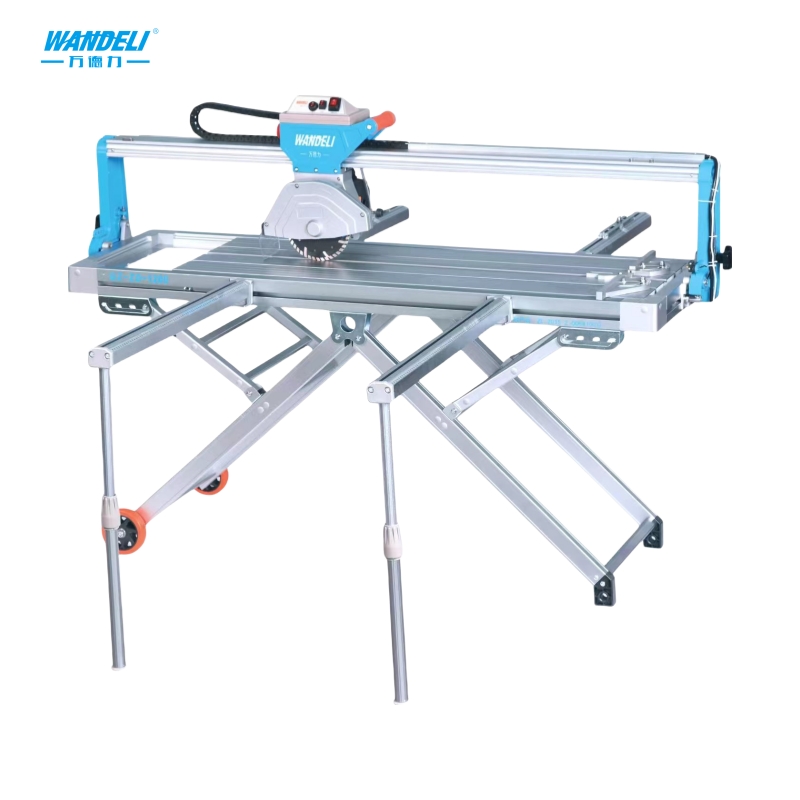

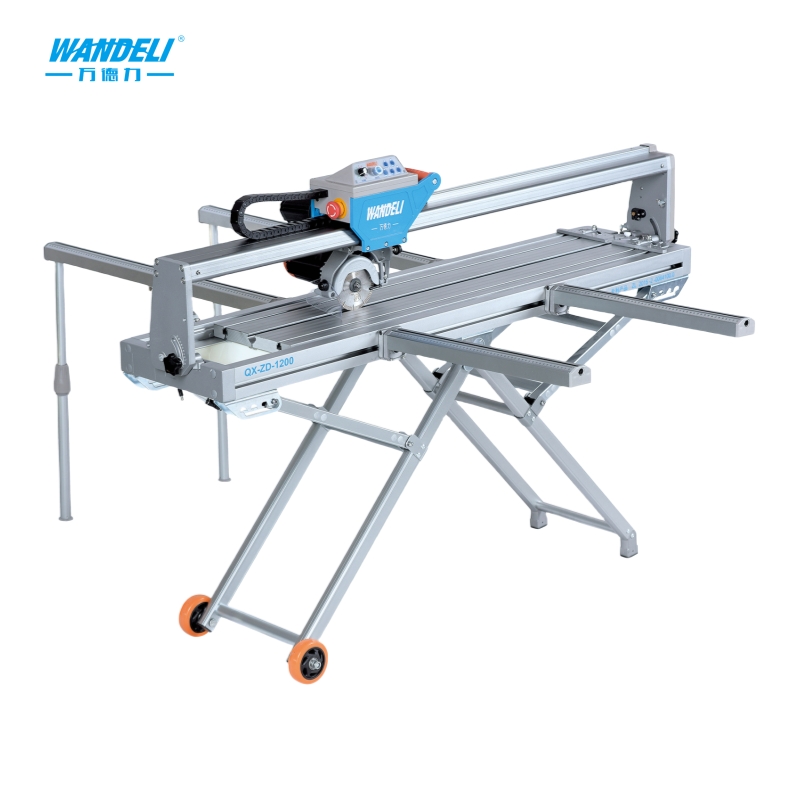

Automatic ceramic tile cutting machine operation method

1, the machine must be installed grounding protection and leakage protector, otherwise it is strictly prohibited to use power.

2, the ceramic tile cutting machine is strictly prohibited to operate without water, and must be covered with a protective cover to prevent injury.

3, tile cutting machine cutting, feed to slow, slow out of the knife.

4. When chamfering, loosen the two fixing screws of the rotating turn, adjust to the right Angle, and lock the screws of the rotating turn to work.

5. When grooving, loosen the two fixing screws of the rotating head, turn the cutter head, install the grooving wheel, and lock the screws to work.

6. When polishing the thread, remove the blade and replace it with the diamond wheel forming grinding wheel to work.

7, in the cutting process, it is strictly prohibited to loosen the screws of the rotating head, so as not to cause accidents.

8, the specified parts of the refueling lubrication strictly according to the regulations of lubrication, need to refuel once a day, because the operating environment in water, sand, stone powder, maintenance lubrication is particularly important.

9. Check the integrity of the protective cover to prevent water and sand from entering the guide rail.

10, after the work, clean the fuselage, and cut off the power.
